Permanent - Water - Air Filter - system (PWL-system)

All chests - dehumidifiers have the PWL - system, which is produced only by MORGENSCHWEIS climate technology worldwide.

A natural filtering principle, the precipitation in rainy comparable.
The horizontal arrangement of the refrigerating register, the slats are vertical, it accumulates between the individual lamellae water and forms a natural air filter, which constantly regenerates.
Dirt, dust and small particles are absorbed in the condensate, and drops into the drip pan.
Clean, washed and dehumidified air thus reaches back into the pool area. This superfluous heating and operating costs can be saved.

Also suitable for allergy sufferers and just!

Suitable for allergy sufferers. The filter system cleans the air very efficiently.

Customer reviews

Specifications for SET ETM EZG &

Special tours by appointment. To change without notice. All statements without guarantee. For Differing values, we assume no liability.

Type	SET 20ETM 20	SET 30ETM 30	SET 40ETM 40	SET 50ETM 50
water Surfacem²	25	35	45	55
Dehumidifying 1 *) l/h	2,3	3,5	4,8	5,8
room temperaturemin/max	18/38	18/38	18/38	18/38
weightwithout packaging	86 kg	103 kg	114 kg	123 kg
supply VoltageVPhHz	230150	230150	230150	400350
inputEntfeuchtenkW	0,9	1,1	1,3	1,5
Max. HeizleistungPWW 90/70PWW 80/60kW	8,57,0	12,210,0	13,211,0	20,517,2
LuftleistungMin / Maxbei 50 Pa in m³/h	250 - 750	250 - 750	400 - 1.200	400 - 1.200
Max. LeistungsaufnahmeVent. kW/h	0,09	0,09	0,330	0,330

finger

Drag your fingers over the table to see the full contents of the table.

Specifications EZG 40 U - 70 U & EZG 40 - 70

Special tours by appointment. To change without notice. All statements without guarantee. For Differing values, we assume no liability.

Type	EZG 40 U	EZG 50 U	EZG 70 U	EZG 40	EZG 50	EZG 70
water Surface m²	45	55	70	45	55	70
Dehumidifying 1 *) l/h	4,8	5,8	7,6	4,8	5,8	7,6
room temperaturemin/max	18/38	18/38	18/38	18/38	18/38	18/38
weightwithout packaging	139 kg	148 kg	175 kg	171 kg	180 kg	203 kg
supply VoltageVPhHz Max. inputkW/h	2301501,5	4003501,7	4003501,9	2301501,9	4003502,0	4003502,3
Max. Heating powerPWW 90 / 70kW	31,0	31,0	31,0	31,0	31,0	31,0
Standard Luftleistung bei 250 Pa m³/h	1.300	1.300	1.300	2.250	2.250	2.250

finger

Drag your fingers over the table to see the full contents of the table.

Specifications EZG 100 - 250

Special tours by appointment. To change without notice. All statements without guarantee. For Differing values, we assume no liability.

Type	EZG 100	EZG 125	EZG 150	EZG 200	EZG 250
water Surfacem²	100	125	150	200	250
Dehumidifying 1 *) l/h	12,0	14,0	17,5	22,0	28,5
room temperaturemin/max	18/38	18/38	18/38	18/38	18/38
size in mmwidthheightdepth	41001600750	41001600750	41001600750	auf Anfrage	auf Anfrage
supply VoltageVPhHz	400350	400350	400350	400350	400350
Max. Heating powerkW	50,0	50,0	50,0	80,0	80,0
Air capacity / external pressurem³/h/Pa	3.200 / 250	4.500 / 200	5.400/ 350	8.000 / 200	10.000 / 200
inputdehumidification power requirements kWh (approx)	4,25	5,2	10,5	13,1	15,9

finger

Drag your fingers over the table to see the full contents of the table.

* 1) at 30 ° room temperature, 60% - 80% RH

All dehumidification mentioned here refer to a room temperature of 30 °, and 60-80% RH The room temperature should not fall below 18 ° C and not exceed 38 ° C! Note: Devices "EZG 40 U", "U 50" and "70 U" exclusively with air circulation fan Only the types of "RTB" include in delivery each have a separate supply and exhaust fan, with the fresh air and exhaust air operation is possible.

Special tours by appointment. To change without notice. Stand: 04-2010

dehumidifiers Accessories

We manufacture div. Accessories for Swimmingpool-dehumidifier, including Outlet rails for installation in the ground control equipment for temperature, humidity and air quality ...

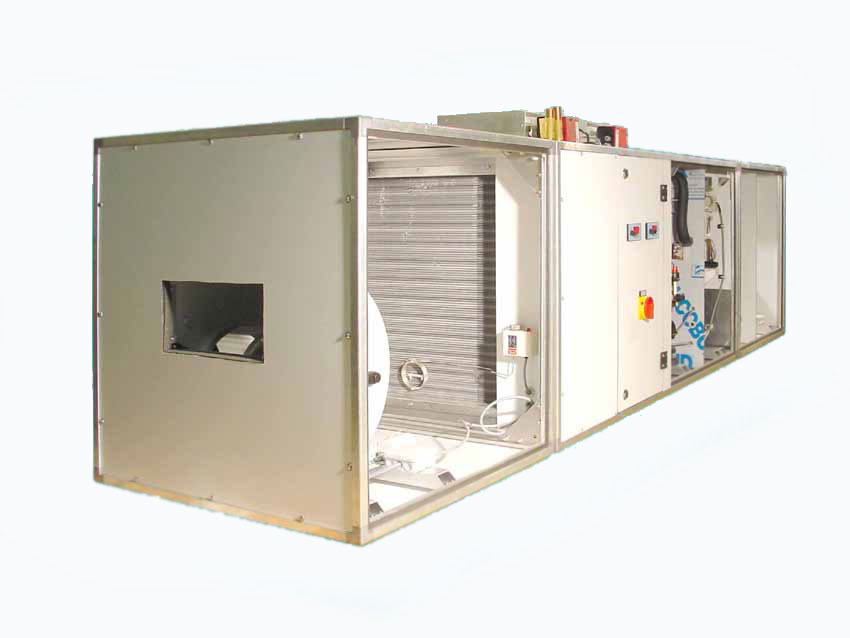

Swimming pool dehumidifiers type EZG

For Schwimmbadentfeuchtung in demanding needs a central dehumidification device is inevitable [RTB]. With the help of invisible installed air ducts so the swimming pool or the pool room is air conditioned, and thereby dehumidified, heated and supplied with fresh air.

Swimming pool dehumidifiers type ETM

IMG 6216 Mobile The good for swimming-pools of MORGENSCHWEIS climate technology will be delivered ready for use and therefore with little installation effort ready for immediate use. Air ducts or pipes for supply and exhaust air are connected to the device variant ETM (dehumidification chest-machine room); in the swimming pool you can only see unobtrusive ventilation grille. The technology remains invisible to the bathroom user.

IMG 6233 M By default, used in all MORGENSCHWEIS dehumidifiers electronic humidity control and the highly efficient Wäremerückgewinnung the operating costs are reduced considerably. This significant advantage over conventional equipment guarantees a long service life an unbeatable advantage in terms of energy costs.

Swimming pool dehumidifiers type ETM

For energy cost comparison please click on the following graph:

And so the MORGENSCHWEIS function dehumidifier:

MORGENSCHWEIS dehumidifiers are performance-optimized heat pump with a
high-efficiency, full heat recovery.
All dehumidifiers are based on the heat pump principle.
The moist air is removed via a closed coolant circuit heat energy.
Water is separated and rains in the drip tray.
The extracted heat energy then heats the cooled and dry air at Durchströhmen the capacitor.
Subsequently, the warm and dry air flows out of the dehumidifier.
The condensate can be fed to the pool water.

Swimming pool dehumidifiers SET Type

"SET" is the abbreviation for pool-Entfeuchtungstruhe. The instruments, type "SET" are ready to use dehumidifiers for installation directly in the swimming hall. The air intake is via air vents in the front door, is blown out the dried warm air over 380 degree rotatable round diffusers with obliquely louvers.
